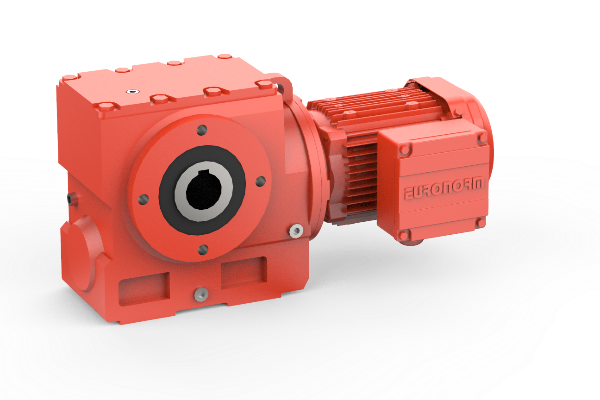

Euronorm Haakse tandwielkast 32rpm, 0,37kW, holle asmaat 25/30mm

Rated speed: 32rpm
Rated output torque (Tnom): 90Nm
Service factor: 1.75

Gear ratio: 44.22
Oil amount of final stage: 0.4l
Viscocity of the oil: Food grade oil VG460 (-20°C / +60°C)
Weight: 11kg
Material: Cast iron
Diameter output shaft: 25H7
Output shaft type: hollow shaft

Power: 0.37kW
Motor voltage CE
230/400V 50Hz
Current at delta connection: 1.82A
Current at star connection: 1.05A
Motorpoles: 4
Rpm at 50Hz: 1415rpm
Current start/nominal: 5x
Efficiency at rated torque & 50 Hz: 77.3%
Cosinus phi: 0.66
Torque at nominal rpm: 2.5Nm
Torque start/nominal: 2.5x
Torque stalling/nominal: 2.6x
Weight: 9.4kg
Diameter flange: 120mm
Shaft diameter: 10mm
Material: Aluminium
Thermal protection: no thermal protection
Energy efficiency class: IE3
Isolation class; Class F (155 °C)
IP class: IP55
Motor cooling: TEFC - Standard fan cooled motor IC411
Duty type: S1/S9

Output shaft position: Insert shaft, shaft side A

Connectionbox position: 0°

Gland position: X

Type of coating system: C1 - 50 μm

Color: RAL7031
