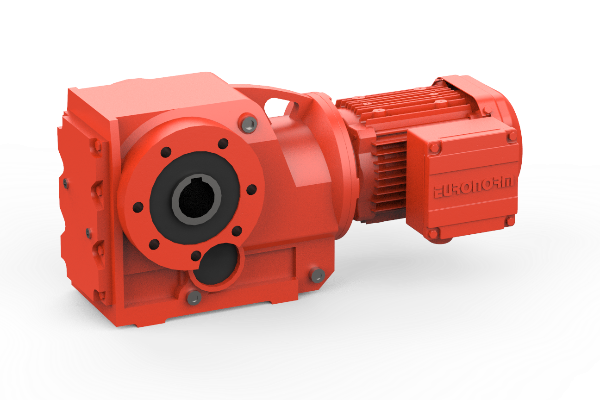

Euronorm kegelwielkast 25rpm, 2,2kW, holle asmaat 50mm

Rated speed: 24.9rpm
Rated output torque (Tnom): 823Nm
Service factor: 1.9

Gear ratio: 58.34
Oil amount of final stage: 2.2l
Viscocity of the oil: Mineral oil VG 220  -15°C / +40°C
Weight: 46kg
Material: Cast iron
Diameter output shaft: 50H7
Output shaft type: Output shaft type

Power: 2.2kW
Grid type:  Europe CE / UKCA
Motor voltage CE: 230/400V 50Hz
Current at delta connection: 8.4A
Current at star connection: 4.8A
Motorpoles: 4
Rpm at 50Hz: 1450rpm
Current start/nominal: 7.5x
Efficiency at rated torque & 50 Hz: 86.7%
Cosinus phi: 0.76
Torque at nominal rpm: 14.49Nm
Torque start/nominal: 3x
Torque stalling/nominal: 2.8x
Weight: 27.6kg
Diameter flange: 200mm
Shaft diameter: 16mm
Material: Aluminium
Thermal protection: no thermal protection
Energy efficiency class: IE3
Isolation class: Class F (155 °C)
IP class: IP55
Motor cooling: TEFC - Standard fan cooled motor IC411
Duty type: S1/S9

Output shaft position: shaft side A
Mounting position: M1
Connectionbox position: 0°
Gland position: x

Type of coating system : C1 - 50 μm
