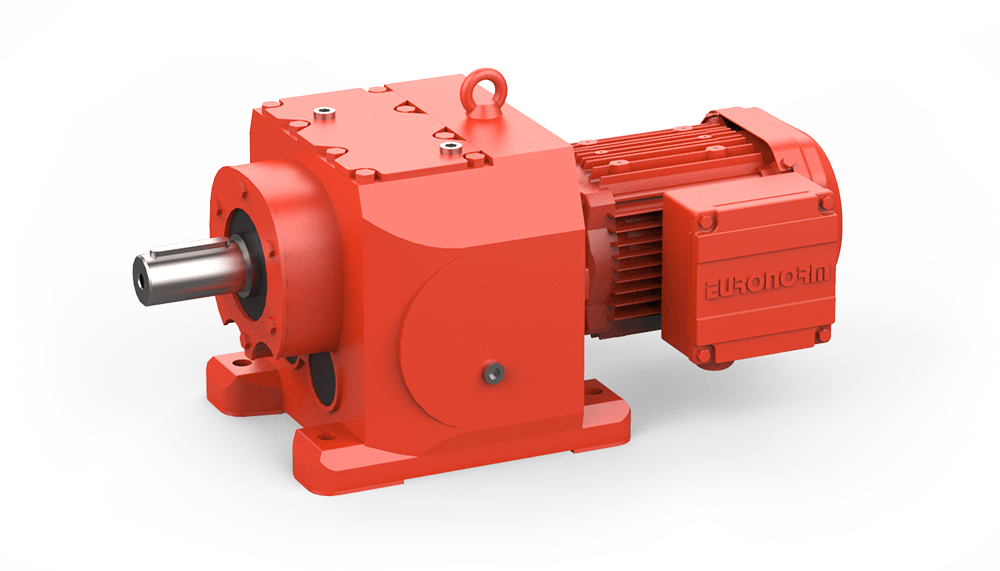

Euronorm Rechte tandwielkast 50rpm, 0,75kW, asmaat 25x50mm

Rated speed: 50.5rpm
Rated output torque (Tnom): 138Nm
Service factor: 1.4

Gear ratio: 28.73
Oil amount of final stage: 0.3l
Viscocity of the oil: Food grade oil VG220 (-25°C / +40°C)
Weight: 10kg
Material: Cast iron
Diameter output shaft: 25k6 x 50mm
Output shaft type: output shaft

Power: 0.75kW
Motor voltage CE
230/400V 50Hz
Current at delta connection: 3.08A
Current at star connection: 1.77A
Motorpoles: 4
Rpm at 50Hz: 1450rpm
Current start/nominal: 7,3x
Efficiency at rated torque & 50 Hz: 82.5%
Cosinus phi: 0.74
Torque at nominal rpm: 4.94Nm
Torque start/nominal: 3x
Torque stalling/nominal: 3.1x
Weight: 15kg
Diameter flange: 120mm
Shaft diameter: 12mm
Material: Aluminium
Thermal protection: no thermal protection
Energy efficiency class: IE3
Isolation class; Class F (155 °C)
IP class: IP55
Motor cooling: TEFC - Standard fan cooled motor IC411
Duty type: S1/S9

Connectionbox position: 0°

Gland position: X

Type of coating system: C1 - 50 μm

Color: RAL7031
