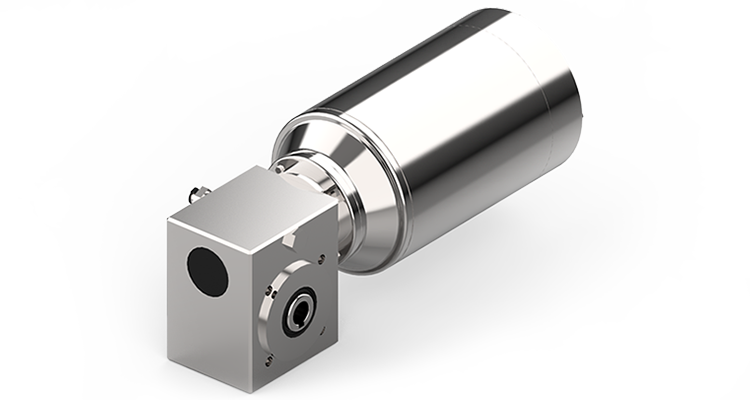

Euronorm RVS Haakse tandwielkast 32rpm, 0,37kW, holle asmaat 25mm

Rated speed: 47.83rpm
Rated output torque (Tnom): 54Nm
Service factorL 1.56
Total weight: 19.5kg

Rated output torque at Fb =84Nm
Gear ratio: 30
Diameter input shaft: 14mm
Oil amount of final stage: 0.5l
Weight: 3.5kg
Efficiency (static):44%
Efficiency (dynamic): 72%
Backlash output shaft: 23'
Diameter output shaft: 25mm
Output shaft diameter (hollow):25mm
Material: Stainless steel
Flange type:B14a
Worm gear box: 1

Power: 0.37kW
Motor voltage CE: 230/400V 50Hz
Current at delta connection: 1.1A
Current at star connection: 0.63A
Motorpoles: 4
Rpm at 50Hz: 1435rpm
Current start/nominal: 8x
Efficiency at rated torque & 50 Hz: 79%
Cosinus phi: 0.64
Torque at nominal rpm: 2.5Nm
Torque start/nominal: 4x
Torque stalling/nominal: 5x
Weight: 16kg
Diameter flange: 105mm
Shaft diameter: 14mm
Energy efficiency class: IE3
IP class: IP69k
Motor cooling :1
Duty type: S1/S9
Flange type: B14a

Mounting position: M1

Connectionbox position: 270°

Gland position: x
